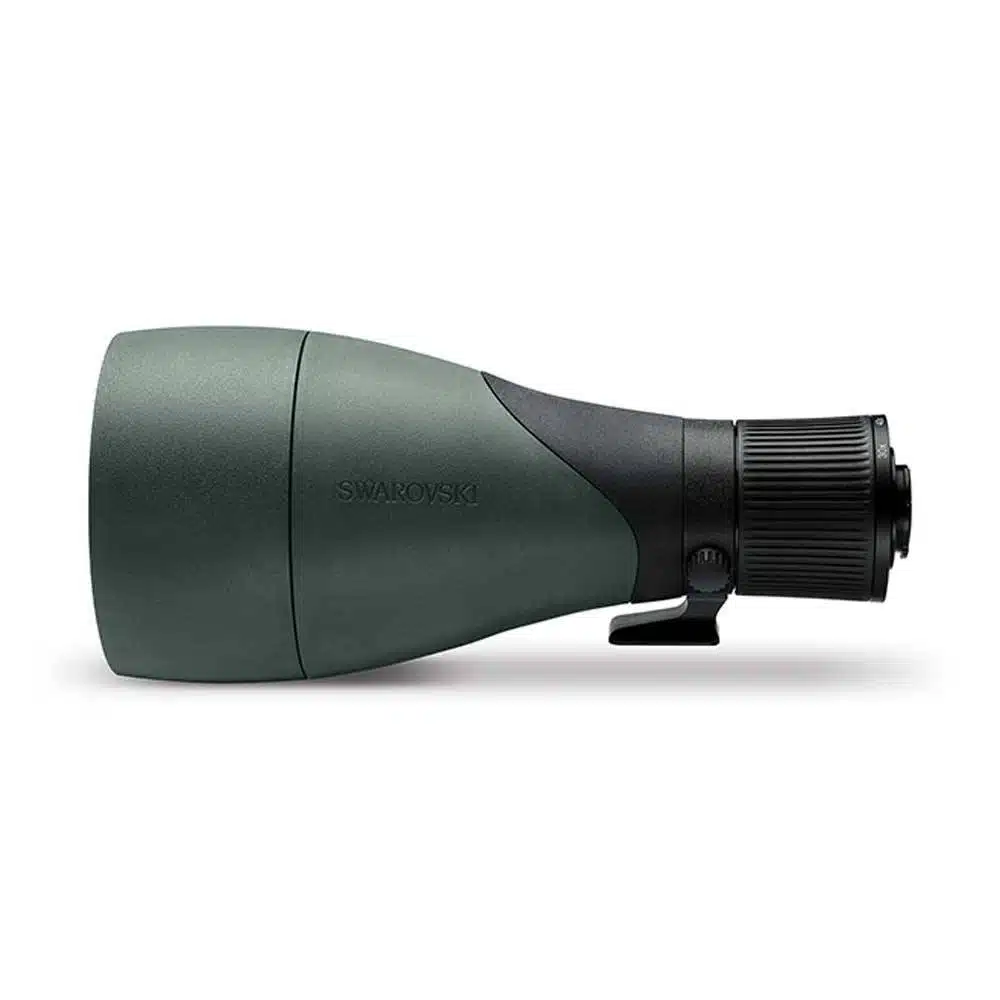

Swarovski STX Spotting Scope Straight

Taking functionality to a new level: the ATX spotting scope system combines exceptionally flexible modularity with optical perfection. The objective lens can be changed to suit any viewing situation. Extreme detail recognition at crucial moments thanks to SWAROVISION technology and total ease of use ensure fascinating experiences in the great outdoors.

STX eyepiece module

Technical Data

Length (in / mm)	6.7 / 170
Weight (oz / g)	30.5 / 865
Functional temperature	-13 °F to +131 °F (-25 °C to +55 °C)
Storage temperature	-22 °F to +158 °F (-30 °C to +70 °C)
Submersion tightness	13 ft (4m) water depth (inert gas filling)

65mm objective module resulting in 25-60x – The compact traveler

The 65 mm objective module is perfect for those who want a lightweight device that offers outstanding optical performance, a large field of view, and impressive close-range focusing (6.9 ft / 2.1 m).

Technical Data

Magnification	25-60x
Effective objective lens diameter (mm)	65
Exit pupil diameter (mm)	2.6-1.1
Eye relief (mm)	20
Field of view (ft/1000 yds / m/1000 m)	124-68 ft / 41-23 m
Field of view (degrees)	2.37-1.30
Field of view, apparent (degrees)	57-71
Shortest focusing distance (ft / m)	6.9 / 2.1
Diopter correction at ∞ (dpt)	> 5
Light transmission (%) total product	86
Objective filter thread	M 67 x 0.75
Length (in / mm)	8.1 / 207
Weight (oz / g)	27.3 / 775
Focal length with TLS APO (mm)	750-1800
Functional temperature	-13 °F to +131 °F (-25 °C / +55 °C)
Storage temperature	-22 °F to +158 °F (-30 °C / +70 °C)
Submersion tightness	13 ft / 4 m water depth (inert gas filling)

85mm objective module resulting in 25-60x – The powerful all-rounder

With the 85 mm objective module you can be prepared for any situation. Its large field of view and zoom range enable quick and precise observation. Excellent light transmission, zoom range, and close-range focusing (11.8 ft / 3.6 m) also make it an ideal tool for digiscoping.

Technical Data

Magnification	25-60x
Effective objective lens diameter (mm)	85
Exit pupil diameter (mm)	3.4-1.4
Eye relief (mm)	20
Field of view (ft/1000 yds / m/1000 m)	124-68 ft / 41-23 m
Field of view (degrees)	2.37-1.30
Field of view, apparent (degrees)	57-71
Shortest focusing distance (ft / m)	11.8 / 3.6
Diopter correction at ∞ (dpt)	> 5
Light transmission (%) total product	86
Objective filter thread	M 87 x 0.75
Length (in / mm)	9.4 / 240
Weight (oz / g)	38.8 / 1100
Focal length with TLS APO (mm)	750-1800
Functional temperature	-13 °F to +131 °F (-25 °C / +55 °C)
Storage temperature	-22 °F to +158 °F (-30 °C / +70 °C)
Submersion tightness	13 ft / 4 m water depth (inert gas filling)

95mm objective module resulting in 30-70x – The perfect frontiersman

The 95 mm objective module offers outstanding detail resolution and up to 70x magnification, making it perfect for long-range viewing. This device even pushes optical tests to their limits and it is the ultimate benchmark for those who want to see even tiny details in razor-sharp focus.

Technical Data

Magnification	30-70x
Effective objective lens diameter (mm)	95
Exit pupil diameter (mm)	3.2-1.4
Eye relief (mm)	20
Field of view (ft/1000 yds / m/1000 m)	104-57 ft / 35-19 m
Field of view (degrees)	1.98-1.09
Field of view, apparent (degrees)	57-71
Shortest focusing distance (ft / m)	15.7 ft / 4.8 m
Diopter correction at ∞ (dpt)	> 5
Light transmission (%) total product	86
Objective filter thread	M 97 x 0.75
Length (in / mm)	11.6 / 294
Weight (oz / g)	47.3 / 1340
Focal length with TLS APO (mm)	900-2100
Functional temperature	-13 °F to +131 °F (-25 °C / +55 °C)
Storage temperature	-22 °F to +158 °F (-30 °C / +70 °C)
Submersion tightness	13 ft / 4 m water depth (inert gas filling)

115mm objective module

The 115-mm objective module raises the bar with the largest lenses on the market. This gives you a crucial beneficial particularly at dawn and dusk. Now you can see things others miss.

Technical Data

Magnification	30-70x
Effective objective lens diameter (mm)	115
Exit pupil diameter (mm)	3.9-1.6
Eye relief (mm)	20
Field of view (ft/1000 yds / m/1000 m)	104-57 ft / 35-19 m
Field of view (degrees)	1.98-1.09
Field of view, apparent (degrees)	57-71
Shortest focusing distance (ft / m)	15.7 ft / 4.8 m
Diopter correction at ∞ (dpt)	> 5
Light transmission (%) total product	86
Objective filter thread	M 118 x 0.75
Length (in / mm)	18.4 / 468
Weight (oz / g)	104.6 /2965
Focal length with TLS APO (mm)	900-2100
Functional temperature	-13 °F to +131 °F (-25 °C / +55 °C)
Storage temperature	-22 °F to +158 °F (-30 °C / +70 °C)
Submersion tightness	13 ft / 4 m water depth (inert gas filling)

Instruction Manuals

Instruction manual – ATX-STX

pdf – 20 MB

Downlo

Technical Data

Technical Data – ATX-STX

pdf – 713 KB

Download

In addition to ergonomic design and innovative technology, our products are also distinguished by unmatched quality. We check every production step and every individual product for 100% quality prior to delivery. We therefore grant our customers an extensive warranty.

Warranty

Warranty ATX-STX

pdf – 25 KB

Downloads

Our repair and service department will be happy to help you at all times if you have any further questions about the warranty on SWAROVSKI OPTIK products.
