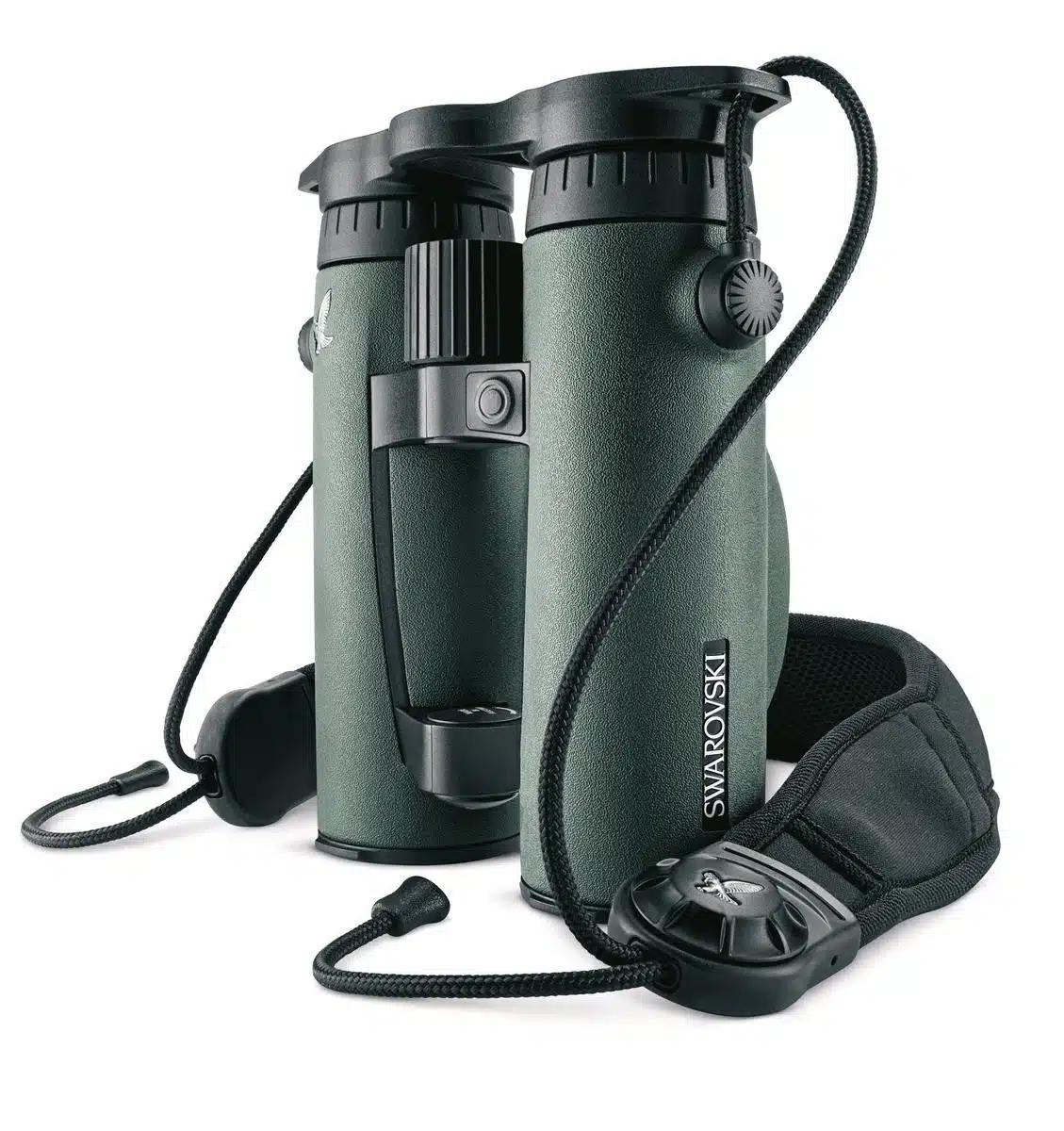

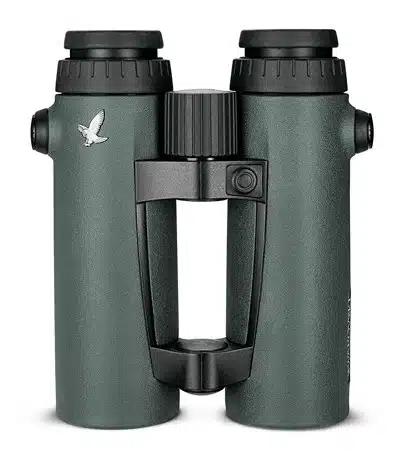

Swarovski EL Range 8×42 Binoculars

The new EL Range offers the best combination of long-range optics and ergonomic design. The master craftsmanship underlying these binoculars is proven by razor-sharp images combined with precise range and angle measurement, as well as their perfectly balanced weight, allowing you to hold them steady. Other benefits of the new EL Range are the FieldPro package, which includes a new strap connector making it extremely simple to switch quickly and flexibly between strap and accessories and the new, distinctive measurement button.

Supplied Accessories: Comfort carrying strap pro with pockets for the replacement battery, made of new, improved material to make it more comfortable to carry, a field bag, eyepiece cover, and objective lens cover

Technical Data

Magnification	8x
Effective objective lens diameter (mm)	42
Exit pupil diameter (mm)	5.3
Exit pupil distance (eye relief) (mm)	19.2
Field of view (ft/1000 yds / m/1000 m)	411 / 137
Field of view (degrees)	7.8
Field of view for eyeglass wearers (degrees)	7.8
Field of view, apparent (degrees)	61
Shortest focusing distance (ft / m)	16.4 / 5
Dioptric compensation (dpt)	-7/+5
Light transmission (%)	91
Pupil distance (in / mm)	2.2 – 2.9 / 56 – 74
Twilight factor acc. to DIN 58388	18.3
Length approx. (in / mm)*	6.5 / 166
Width approx. (in / mm)**	5.4 / 137
Height approx. (in / mm)**	3.2 / 81
Weight approx. without batteries (oz/g)	31.6 / 895
Functional temperature	+14 °F to +131 °F (-10 °C / +55 °C)
* Value with eyecups twisted in	_
** Dimensions at a pupil distance of 2.5 in / 64 mm	_

Measuring

Measuring range (yds/m)	33 – 1500 / 30 – 1375
Measuring accuracy (yds/m)	± 1 / 1
Measuring time (sec)	≤ 1
Angular measurement (degrees)	± 90
Laser	Class 1 EN/FDA
Units	Yard / Meter
Battery	CR2
Life cycle	1,000 measurements

The technical data is also available in pdf format in the downloads section.

Instruction Manuals

Instruction manual – EL Range

pdf – 17 MB

Download

Technical Data

Technical Data – EL Range

pdf – 513 KB

Download

In addition to ergonomic design and innovative technology, our products are also distinguished by unmatched quality. We check every production step and every individual product for 100% quality prior to delivery. We therefore grant our customers an extensive warranty.

Warranty

Warranty EL Range

pdf – 50 KB

Downloads

Our repair and service department will be happy to help you at all times if you have any further questions about the warranty on SWAROVSKI OPTIK products.
