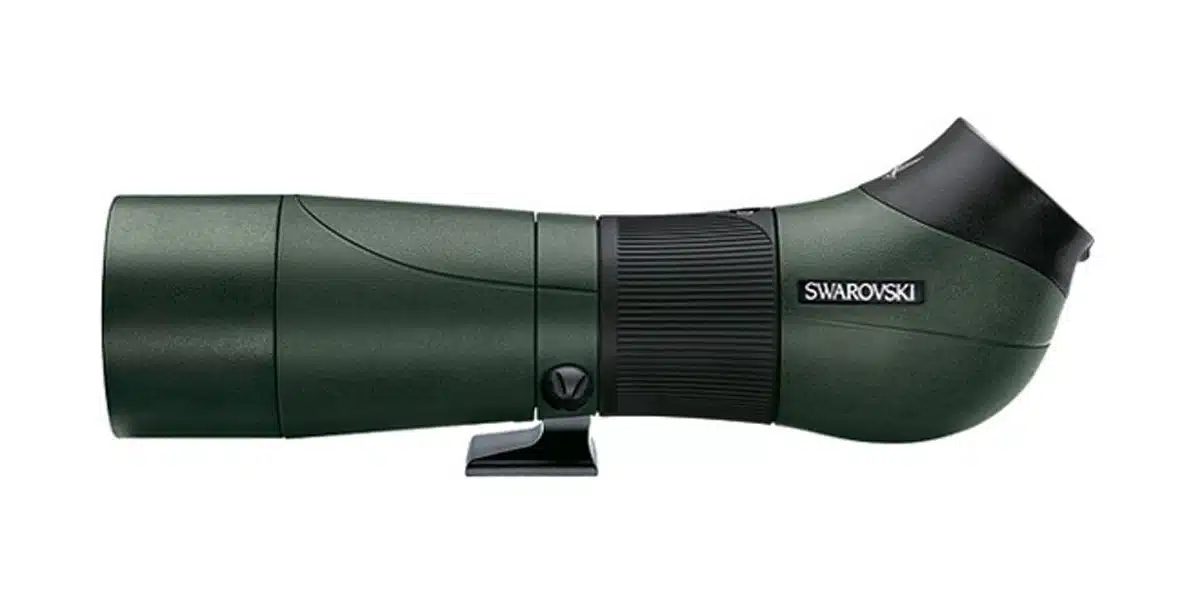

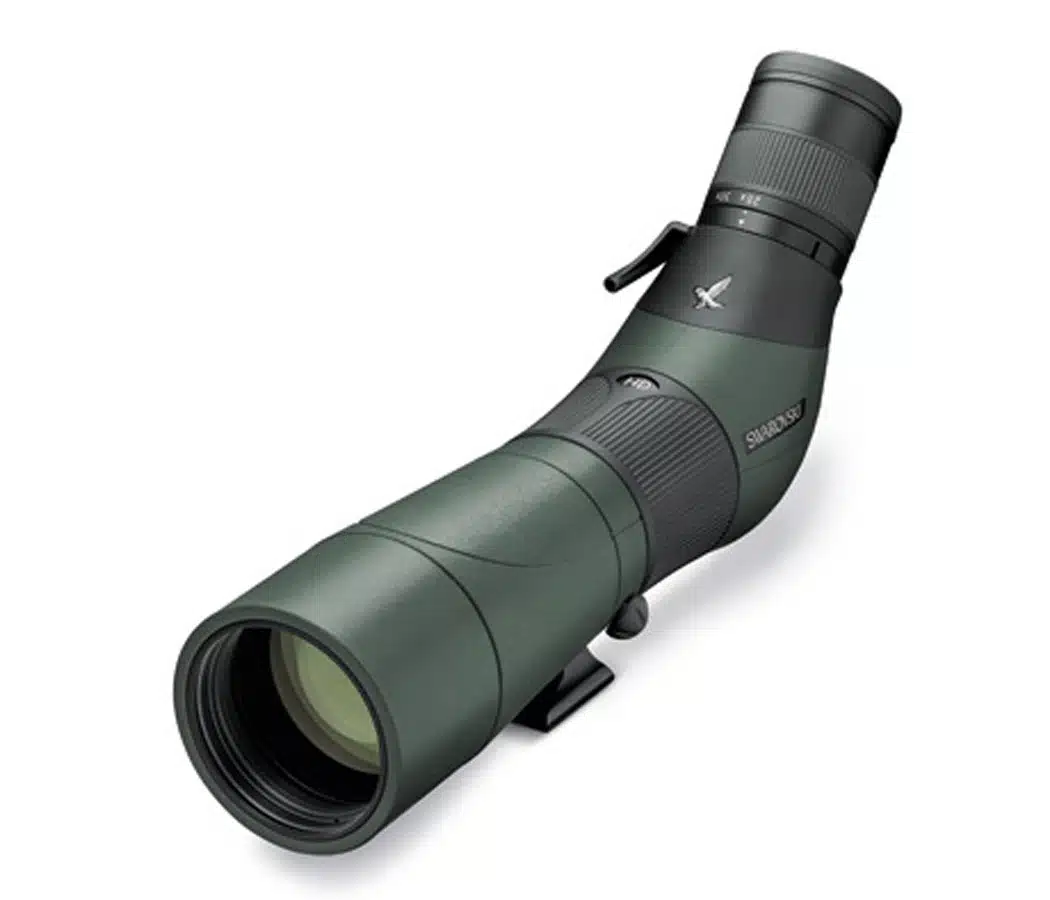

Swarovski ATS Telescope Angled

Reference BF-1X4H20-03 BF-1Y4H20-03

£1,255.00£2,305.00 VAT inc

Available In-Store To Try

CHOOSE YOUR OPTION ON THE RIGHT

The best selling brand for bird watchers. Offers all the features that you would look for in a spotting scope, including a tried-and-tested, lightweight design and perfect optics.

Clear

Our Description

THIS SPOTTING SCOPE ON ITS OWN IS NOT SUPPLIED WITH AN EYEPIECE

As some of the lightest quality spotting scopes in the world, they are characterized by detailed optics with exceptional edge-to-edge sharpness and color fidelity.

ATS 65

The ATS 65 is a lightweight and handy spotting scope that offers high optical quality, despite its compact dimensions. Perfectly suited to long days outdoors, when every ounce/gram counts, its angled view facilitates comfortable and effortless observation.

Technical Data
Effective objective lens diameter (mm) 65
Eye relief (mm) 17
Shortest focusing distance (ft / m) 9.8 / 3
Diopter correction at ∞ (dpt) > 5
Objective filter thread M 67 x 0.75
Functional temperature -13 °F to +131 °F (-25 °C to +55 °C)
Storage temperature -22 °F to +158 °F (-30 °C to +70 °C)
Submersion tightness 13 ft (4m) water depth (inert gas filling)
Technical data ATS 65 with eyepiece 25-50x
Magnification 25-50x
Exit pupil diameter (mm) 2.6-1.3
Field of view (ft/1000 yds / m/1000 m) 126-81 ft / 42-27 m
Field of view (degrees) 2.4-1.55
Field of view for spectacle wearers (degrees) 2.4-1.55
Field of view. apparent (degrees) 60-70
Light transmission (%) total product 85
Weight angled view (oz / g) 49.6 / 1405
Length angled view (in / mm) 14.6 / 370
Focal length with TLS APO (mm) 750-1500
Technical data ATS 65 with eyepiece 20-60x
Magnification 20-60x
Exit pupil diameter (mm) 3.3-1.1
Field of view (ft/1000 yds / m/1000 m) 108-60 / 36-20
Field of view (degrees) 2.1-1.1
Field of view for spectacle wearers (degrees) 2.1-1.1
Field of view. apparent (degrees) 40-65
Light transmission (%) total product 86
Weight angled view (oz / g) 48.3 / 1370
Length angled view (in / mm) 14.6 / 370
Focal length with TLS APO (mm) 600-1800

ATS 80

With its angled view the ATS 80 enables comfortable observation for hours. The 80 mm objective lens diameter provides higher detail recognition, while a wider exit pupil ensures brighter images and comfortable viewing even in poor lighting conditions.

Technical Data
Effective objective lens diameter (mm) 80
Eye relief (mm) 17
Shortest focusing distance (ft / m) 16.4 / 5
Diopter correction at ∞ (dpt) > 5
Objective filter thread M 82 x 0.75
Functional temperature -13 °F to +131 °F (-25 °C to +55 °C)
Storage temperature -22 °F to +158 °F (-30 °C to +70 °C)
Submersion tightness 13 ft (4m) water depth (inert gas filling)
Technical data ATS 80 with eyepiece 25-50x
Magnification 25-50x
Exit pupil diameter (mm) 3.2-1.6
Field of view (ft/1000 yds / m/1000 m) 126-81 ft / 42-27 m
Field of view (degrees) 2.4-1.55
Field of view for spectacle wearers (degrees) 2.4-1.55
Field of view. apparent (degrees) 60-70
Light transmission (%) total product 85
Weight angled view (oz / g) 59.1 / 1675
Length angled view (in / mm) 15.8 / 400
Focal length with TLS APO (mm) 750-1500
Technical data ATS 80 with eyepiece 20-60x
Magnification 20-60x
Exit pupil diameter (mm) 4.0-1.3
Field of view (ft/1000 yds / m/1000 m) 108-60 / 36-20
Field of view (degrees) 2.1-1.1
Field of view for spectacle wearers (degrees) 2.1-1.1
Field of view. apparent (degrees) 40-65
Light transmission (%) total product 86
Weight angled view (oz / g) 57.8 / 1640
Length angled view (in / mm) 15.8 / 400
Focal length with TLS APO (mm) 600-1800
Instruction Manuals
Instruction manual – ATS-STS pdf – 8 MB Download
Technical Data
Technical Data – ATS-STS pdf – 1 MB Download

This non-stick coating on the lenses makes it easier to clean away dirt such as water marks, insect repellents, or tree resin.

In addition to ergonomic design and innovative technology, our products are also distinguished by unmatched quality. We check every production step and every individual product for 100% quality prior to delivery. We therefore grant our customers an extensive warranty.

Warranty
Warranty ATS-STS pdf – 31 KB Downloads

Our repair and service department will be happy to help you at all times if you have any further questions about the warranty on SWAROVSKI OPTIK products.

Features

Reference: BF-1X4H20-03 BF-1Y4H20-03
Eyepiece Size

, ,

Spotting Scope Sizes

,

Extra-Low Dispersion Glass (ED)

Yes

Lens Diameter

,
