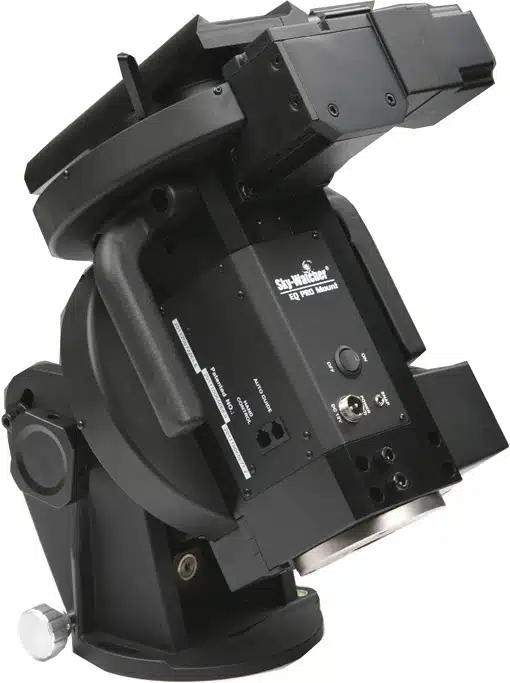

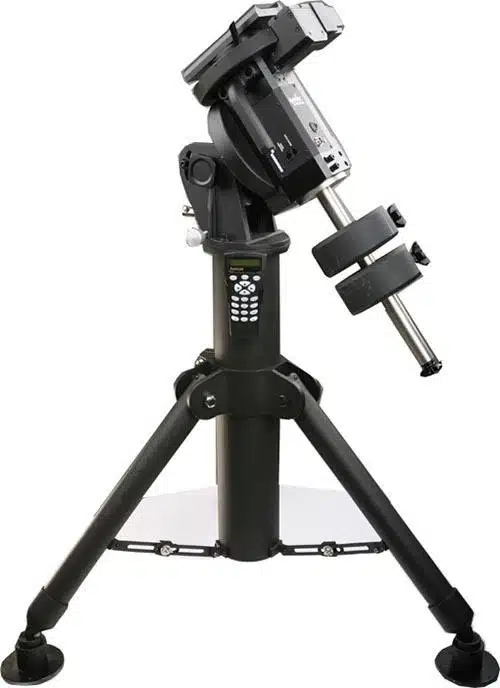

Sky-Watcher EQ8-R Pro Mount + Pier Tripod 20323 20293

Supplied complete with Sky-Watcher’s 20293 pier tripod. Two 10kg counterweights and the Synscan computerised handset are supplied. The mount is also compatible with the optional Synscan™ Wi-Fi adaptor and Synscan™ Pro Apps which can control the mount wirelessly.

Improvements over the previous EQ8 model include:

• Cable management system for reduced tangling.

• Improved Connectivity

• Improved installation position of motors for improved balance.

• Improved clutch mechanism provides more holding strength.

• Improved dovetail groove knob for added comfort and increased locking power.

• Belt drive on the DEC axes for quiet slewing (now belt driven on BOTH axes)

**Please note Freedom-Find encoders are not present on the EQ8-R**

Permanent Periodic Error Correction

The EQ8 mount is equipped with an index on its R.A. worm; thus, the motor controller can keep tracking the current position of the worm. After a proper PEC training routine, in which the training data is permanently stored in the motor controller, a user can start the periodic error correction (PEC) at any time to improve the tracking performance for short focal length astrophotography. A training process is not required in the next observing session (assuming that the polar alignment is always accurate). Thus, this is a Permanent Period Error Correction (PPEC). A user can train the mount with manual guiding or auto-guiding. For detailed instructions,

Batch Exposures Function

The EQ8 mount has a SNAP port that can control a camera’s shutter release. With the SynScan hand control’s “Camera Control” function, users can take batch exposures when doing astrophotography. Up to 8 groups of “Exposure-time & Frames” combinations can be set on the SynScan hand controller. For detailed information, refer to the SynScan hand control’s instruction manual.

Auto-Home Function

The EQ8 mount is equipped with two home position sensors. Working with the SynScan hand controller, the mount can be placed in the same home position after turning on the power. For detailed information, refer to the SynScan hand control’s instruction manual.

We have included the diagram below for those wanting to mount an EQ8 head to an existing pier.

Note regarding delivery: Because the EQ8-R Pro is a large mount, it is delivered separately on a pallet.  Delivery requires 3-5x days.  The courier will contact you when it reaches your local depot to arrange a delivery date.
