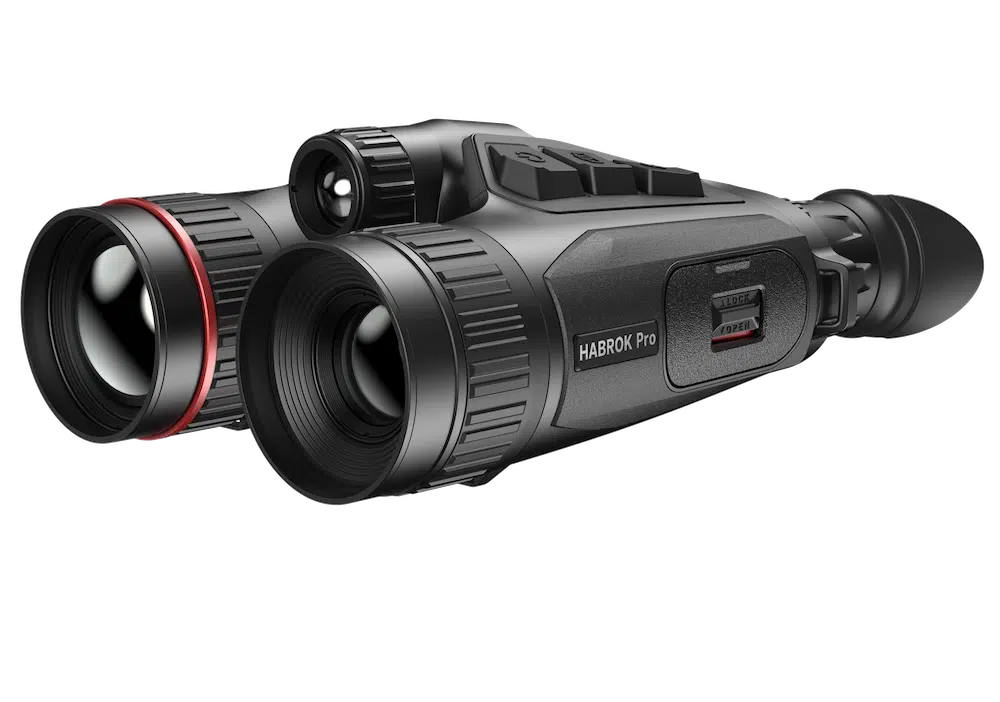

HikMicro Habrok HQ50L PRO 640px 50mm LRF Thermal / 4K Optical
Reference: HM-HQ50LPro

HikMicro Habrok HQ50L PRO 640px 50mm LRF Thermal / 4K Optical

£3,199.00 VAT inc

Rated 0 out of 5

HikMicro Habrok HQ50L PRO multi-spectrum binocular is equipped with an 15 mK NETD, 640 × 512 thermal detector @50 mm thermal lens and an advanced 4K digital detector with 60mm lens, ensuring perfect image quality and detail recognition in various weather and light conditions.

In Stock For Delivery

Share:

Warranty 3 Years – With UK servicing If you’re after any lost parts such as lens covers or eye pieces for your unit, Hik Micro now have a spares page which can be found at https://www.hikmicroassist.co.uk/ HIKMICRO has a full UK service and technical centre, complete with Hotline: 0203 514 0092 available to assist with any issues. Register your purchase on the app for an extra 6m warranty!

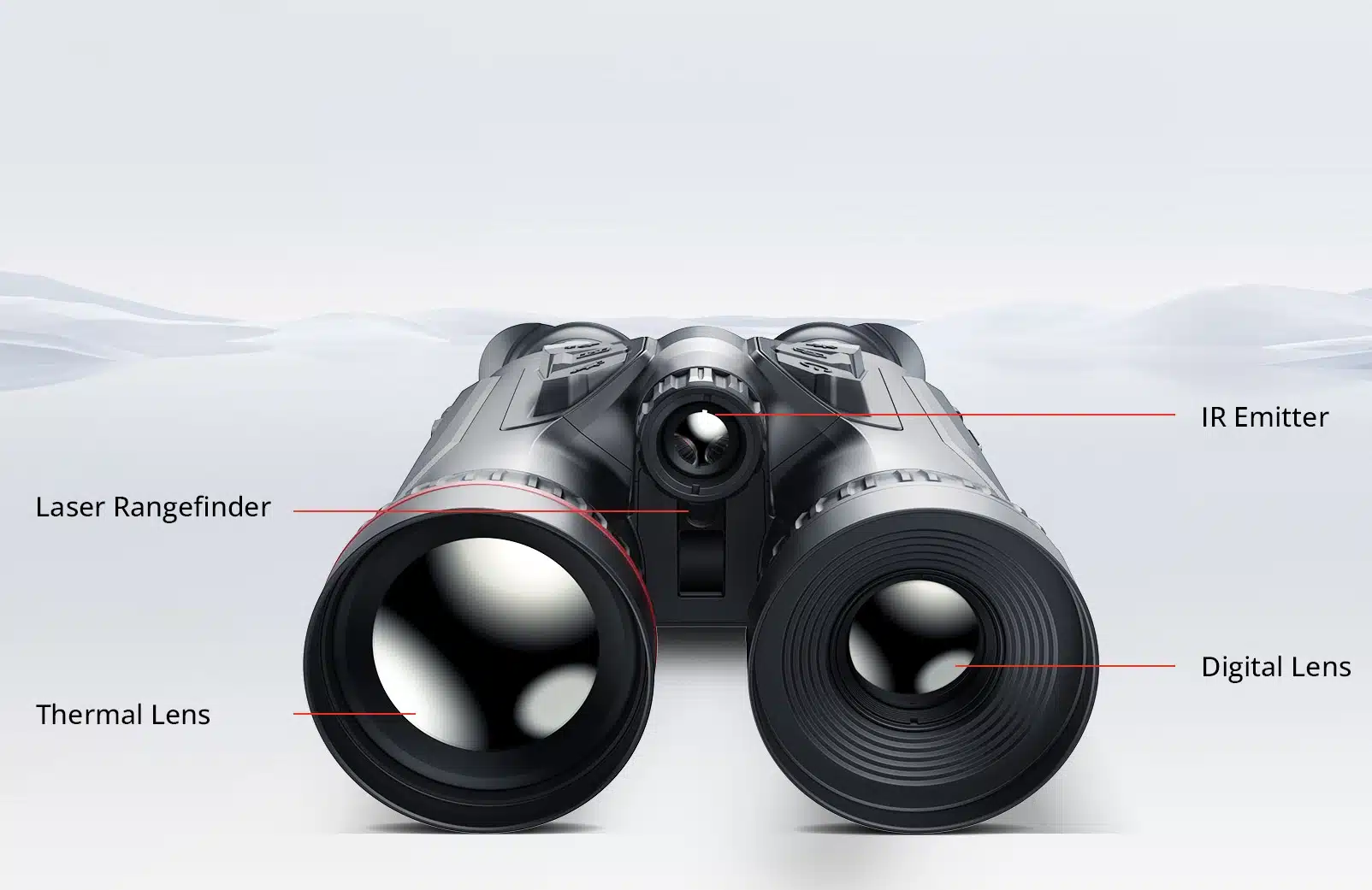

Combined with a 1000 m Laser rangefinder and replaceable IR emitter @850 nm wavelength, this all-in-one binocular can be applied mainly in forest & field hunting, birding, animal searching, rescuing and marine scenario.

Loaded with cutting-edge technology, the latest generation HikMicro Habrok HQ50L Pro thermal binoculars offer the detection power of high resolution thermal alongside the observation power of the latest 4K day & night camera – all in a compact and ergonomic binocular chassis.

Built around HIKMICRO’s incredible new 640x512px, Sub 15mK NETD sensor, the Habrok Pro redefines what is possible from a thermal binocular. The high resolution sensor delivers an unbelievably crisp and detailed image at base mag while also allowing you to use the digital magnification to zoom in without pixilation.  This industry leading thermal sensor provides the detail you need to positively locate and identify animals, people or birds while also giving you a clear view of the surroundings and background. This highly accurate thermal sensor will also continue to deliver in the most challenging conditions, such as rain and fog.

With the press of the button the Habrok switches to its 4K Day & Night camera to deliver a bright, vibrant, full colour image in daylight that allows you to view your surroundings in mind blowing detail. As twilight sets in and the ambient light drops the Habrok continues to shine with unparalleled light gathering capacity. The built in IR torch will activate in total darkness and the camera continues to deliver a high resolution, black and white image. New for the Habrok Pro is image stabilisation to minimise hand shake when observing at high magnification.

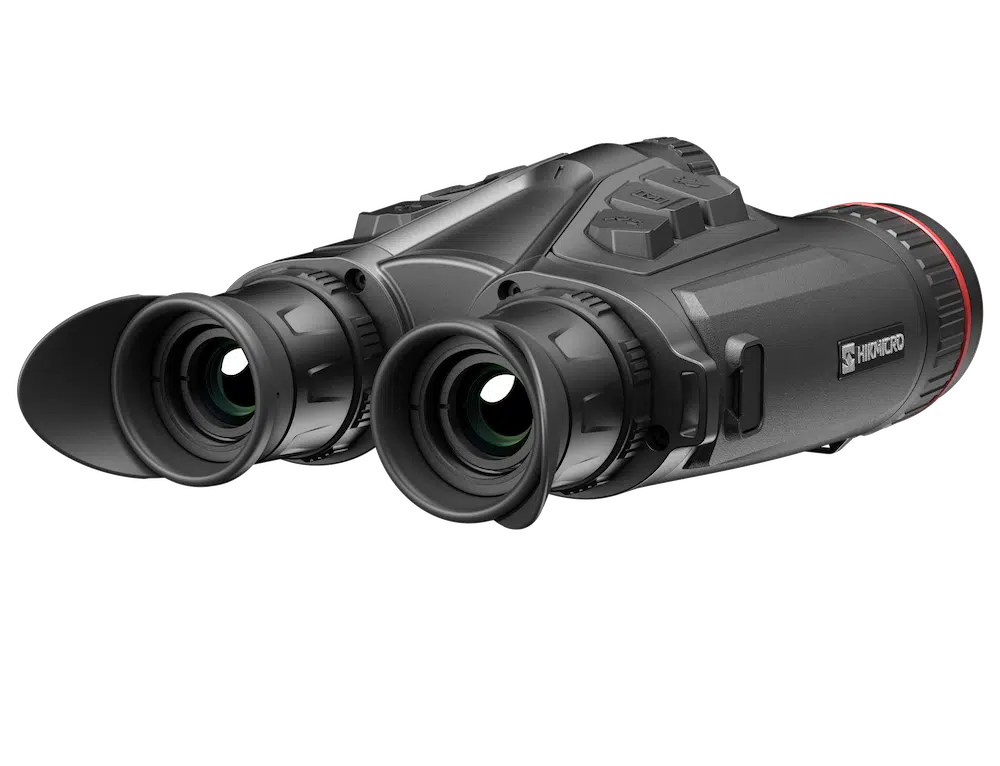

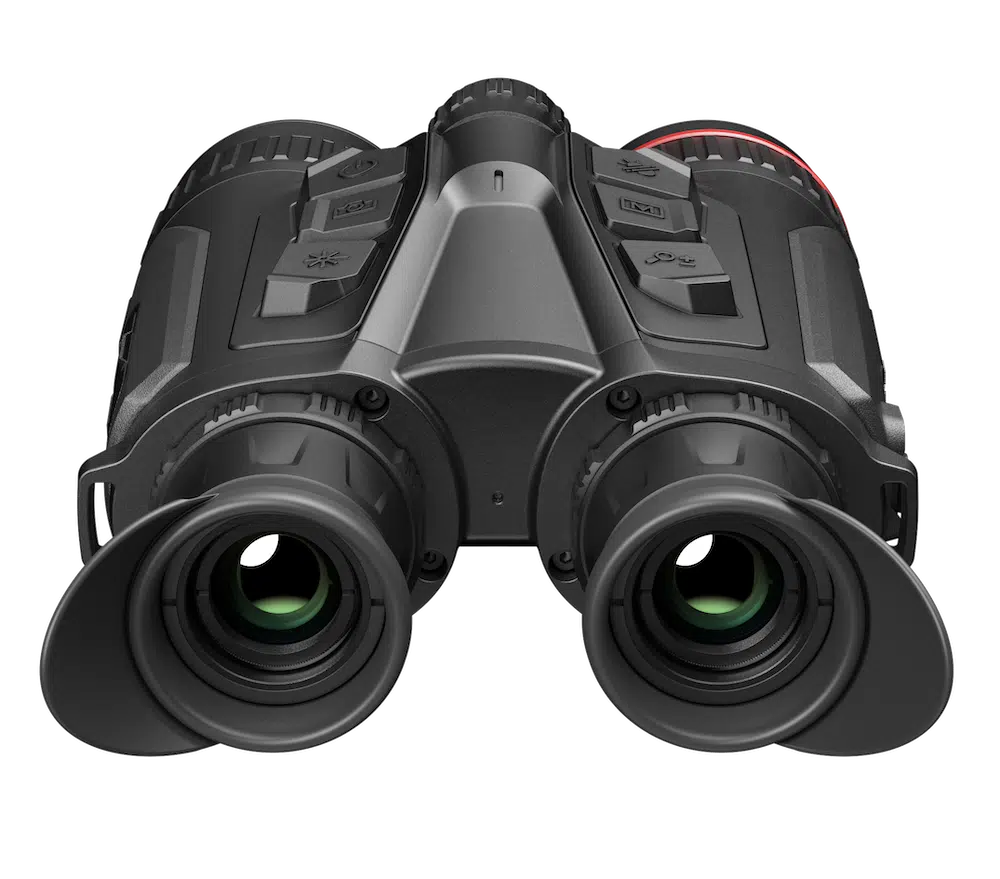

The eyepieces offer a wide and immersive viewing experience of the massive OLED display. You can quickly and easily adjust the interpupillary distance and focus so each eyepiece perfectly matches your eyes. The soft rubber eyecups can be folded back which makes it easy for glasses wearers and comfortable for extended periods of use.

The removable battery pack will power the Habrok Pro for up to 9 hours and there are two batteries supplied in the box so you can be confident that you will never be caught without power. The Habrok Pro is also supplied with HIKMICRO’s new binocular harness which makes the perfect way to carry your binoculars on adventures or a secure way to store them when not in use.

The Habrok Pro will also record and playback thermal and optical images, video and audio in its internal memory, and share it to nearby mobile devices via the dedicated HIKMICRO Sight App. Also on-board is 1000m laser range-finding, GPS and digital compass. The Habrok Pro is HIKMICRO’s new flagship device for many diverse applications, with unrivalled image detail, thermal sensitivity, performance and features.

To help customers access the latest version of software we have produced an easy to follow video guide that talks you through the process of updating any HIKMICRO product.



FEATURES

  • 640 × 512 resolution @12 μm thermal detector
  • High sensitivity thermal module NETD < 15 mK (@25°C, F# = 1.0)
  • 50 mm, F1.0 lens with thermal detection range up to 2600 m
  • 3840 × 2160 4K ultra high-resolution CMOS detector
  • 1920 × 1080 resolution 0.49-inch OLED display
  • Built-in 850 nm IR illuminator and Laser Rangefinder of 1000 m measuring distance
  • 7 h+ continuous operation time with replaceable battery pack
  • 975 g lightweight, with a compact and ergonomic design

specifications

Specification
Thermal Module
Image Sensor VOx Uncooled Focal Plane Arrays
Max. Resolution 640 × 512
Frame Rate 50 Hz
Pixel Interval 12 μm
Response Waveband 8 μm to 14 μm
NETD Less than 15 mK (@25°C), F#=1.0
Lens (Focal Length) 50 mm, F1.0
Focus Mode Focus Ring
Detection Range 2600 m
Min. Focusing Distance 5 m
Magnification 4.3x to 25.8x (6x)
Field of View(H × V), Degrees/m @100 m 8.8° × 5.3°/ 15.4 m × 9.3 m
Optical Module
Image Sensor 1.88” Progressive Scan CMOS
Max. Resolution 3840 × 2160
Focal Length 60 mm, F2.2
Min. Working Distance 3 m
Focus Mode Focus Ring
Magnification 5.5x to 22.0x(4x)
Field of View (H × V), Degrees/m @100 m 7.3°× 4.1° / 12.6 m × 7.2 m
Smart IR Yes
IR Illuminator Wavelength 850 nm
Viewing Range at Night 400 m
Replaceable IR Illuminator Yes
Image Display
Display 0.49 inch, OLED, 1920 ×1080
Palettes Thermal: Black Hot, White Hot, Red Hot, Fusion; Optical: Day, Night, Auto
FFC (Flat Field Correction) Mode Auto, Manual, External Correction
Exit Pupil 8 mm
Eye Relief 15 mm
Diopter (Range) -5D to +3D
Brightness Adjustment Yes
Tone Adjustment Cold, warm
Contrast Adjustment Yes
Zoom Pro Yes
Image Pro 2.0 Yes
System
Record Video Yes
Capture Snapshot Yes
Audio Recording Yes
Standby Mode Yes
Storage Built-in EMMC (64 GB)
PIP Yes
Hotspot Yes
Hot Track Yes
Digital Magnetic Compass Yes
GPS Yes
Local Album Yes
Power Supply
Battery Type Replaceable and Rechargeable Li-ion Battery Pack
Battery Operating Time ≥7 h (-20°C, with hotspot off, LRF and Zoom Pro on)
Type-C Power Supply 5V DC, 2A
Supports External Power Supply
General
Protection Level IP67
Dimension 142.9 mm × 79.7 mm × 230.5 mm (5.6″ × 3.1″ × 9.1″)
Weight 975 g with battery pack
Working Temperature -30℃ to +55℃
Interpupillary Adjustment Range 60 mm to 74 mm
Mounting Adapter 1/4“-20-UNC
Laser Rangefinder
Safety Class for Laser Class 1
Wavelength 905 nm
Max. Measuring Range 1000 m
Measurement Accuracy ±1 m
Min. Measuring Range 10 m
