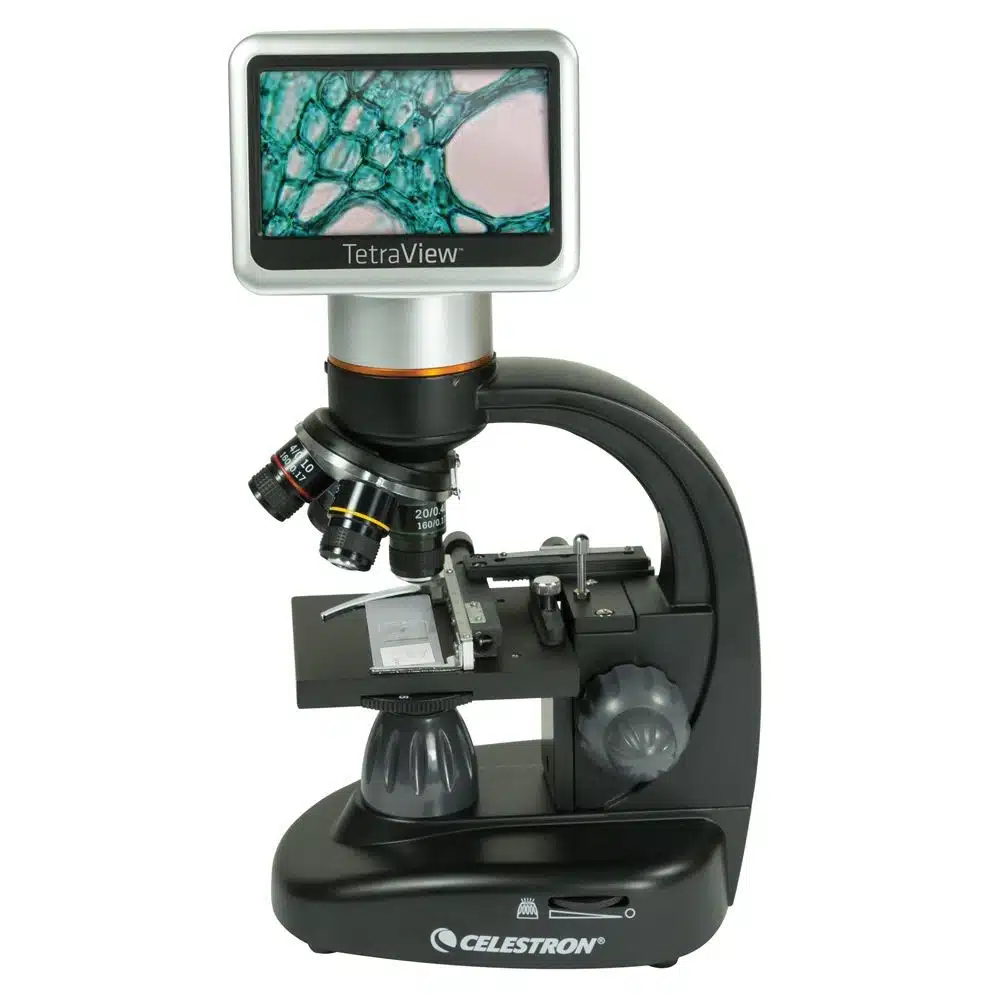

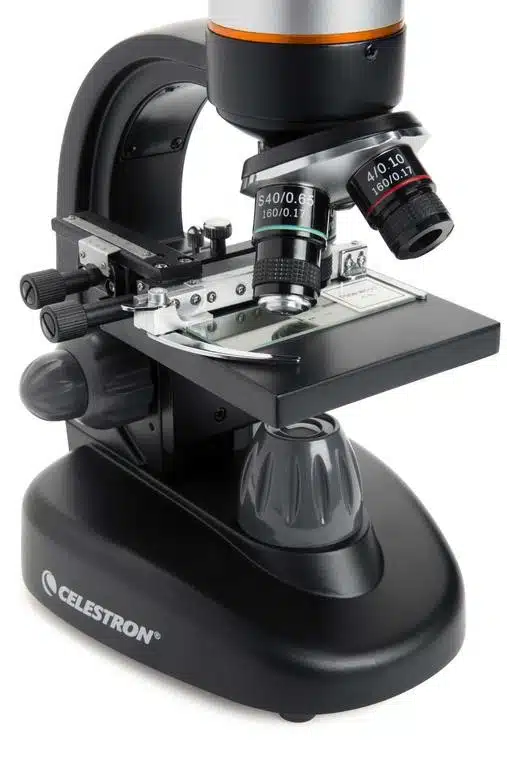

Celestron TetraView LCD Digital Microscope 44347
£449.00 VAT inc
The professional-level Celestron TetraView LCD Digital Microscope is a touchscreen LCD microscope with advanced features at a reasonable price
In Stock For Delivery
- Are You Visiting Our Store? CLICK HERE For Today's Availability
- Delivery or Click n Collect
- 28 Days Returns Policy
TetraView features four fully achromatic lens objectives, a fully mechanical stage, a 4.3” TFT full color touch screen, 5MP CMOS sensor, and a 2GB SD card for storing your photos and videos. Taking high-resolution images and video of specimen slides has never been easier.

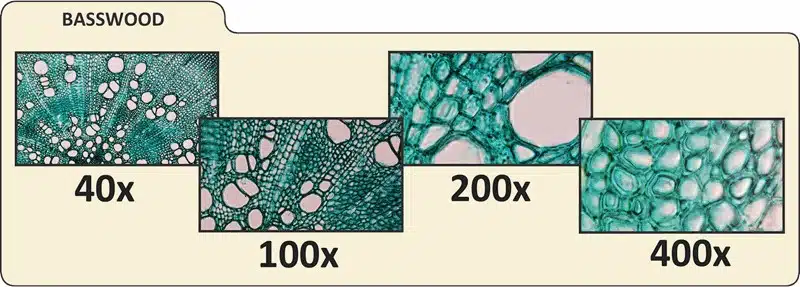

The LCD screen rotates 180° so you can easily share your viewing with others. For an even bigger audience, use the TV output to display on a television or projector. With magnification from 40 to 400x (1600x with digital zoom), TetraView is ideal for viewing a range of cellular specimens on slides.
Great for the discriminating professional or serious hobbyist, the TetraView microscope is an excellent tool for labs, schools, scientific research, and more.
Features
- 40x to 400x magnification (up to 1600x with digital zoom)
- 4.3″ LCD touchscreen
- 5MP CMOS built-in digital camera

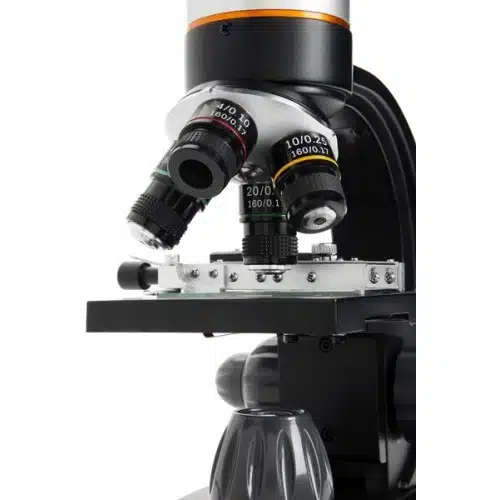

- 4 fully achromatic objective lenses: 4x, 10x, 20x, 40x
- Adjustable LED bottom illumination
- 180° rotatable LCD screen
- Fully mechanical stage
- Coarse and fine focus knobs
- Filter wheel/diaphragm
- AV/TV output
- Battery power option (4AA batteries)
- 2GB SD card included (SD card slot supports up to 32GB)
- Universal AC adapter with multi-plugs for international usage
- Accessories included: 7 prepared slides, hard carrying case, dust cover, touch pen, USB cable, AV out cable
Specifications
- Type of Microscope: LCD Desktop
- Head: 180° rotatable head w/4.3″ TFT LCD Screen
- Nosepiece: Quad with click stop
- Objective(s) Type: (4) Achromatic objectives on turret
- Objective(s) Standard: DIN 35 RMS
- Objective(s) Magnification: 4x, 10x, 20x, 40x
- Objective(s) Thread: WJ 4/5″ x 1/36″
- Focus Type(s): Course Focus and Fine Focus
- Focus Travel (per rotation): 0.7mm to 35.3mm (.027″ to 1.39″) (est.)
- Magnification Range: 40x, 100x, 200x, 400x, Up to 1600x with digtial zoom
- Illumination Type: LEDs
- Illumination Position(s): TBD
- Illumination Adjustability Mechanism: Adjustable wheels at base
- Power Source: Universal 100 to 240V, 50/60 hz multi-country plug and (4) AA (optional)
- Battery Options: Yes (4AA)
- Stage: Fully mechanical with metal clips, 88mm x 88mm (3.5″ x 3.5″) – With
- Filter wheel (Red, blue, green | 1mm, 3mm, 6mm apertures)
- Condenser Type: Aplantic
- Condenser N.A.: N.A. 65
- Stage Diaphragm: Multiple on wheel
- Eyepiece Type: CMOS Sensor in lieu of eyepiece
- Sensor Size: 5MP – 1/2.5″
- Pixel Size: 2.2 μm
- Screen type: High definition touch, 480 x 272 pixels resolution, 109mm (4.3″) with 4x digital zoom, rotates 180°
- Screen Size: 4.3″
- Memory Type: SD Card
- Memory Size: 8G SD included, Supports up to 32G
- Port(s) In: AC Plug (power), SD Card slot (32Gmax)
- Port(s) Out: Video/ TV out, USB 2.0
- AC Adapter: 5-6V DC, 200-1000mA tip positive electrical input. Jack should be
- 5.5mm (.21″) OD, 2.1mm (.08″) ID and 12.5mm (.49″) long
- Still image capture resolution: 1920×1080
2048×1152
2560×1440
3072×1728
3648×2048
3072×1728 - Video resolution: VGA (640 x 480)
- Shutter trigger position: On LCD Screen
- Software: Internal Firmware
- Microscope Dimensions: 78mm x 140mm x 330mm (7″ x 5.5″ x 13″)
- Microscope Weight: 67 oz (1.9 kg)

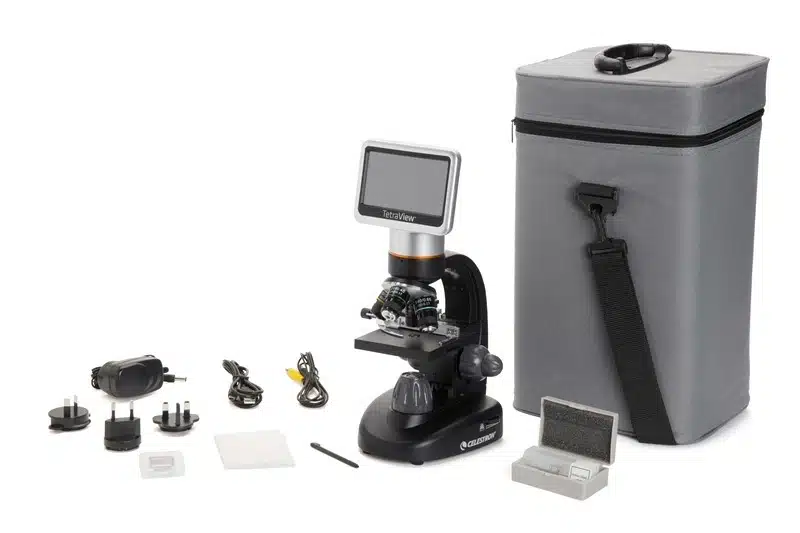

What's In Box
8GB SD Card
USB 2.0 Cable (data transfer)
7 Prepared Slides
4 plug, multi-country AC adapter
Dust Cover
Carrying Case
