Celestron 48mm T-Adapter Edge HD 925 11 14 inch 93622
£69.00 VAT inc

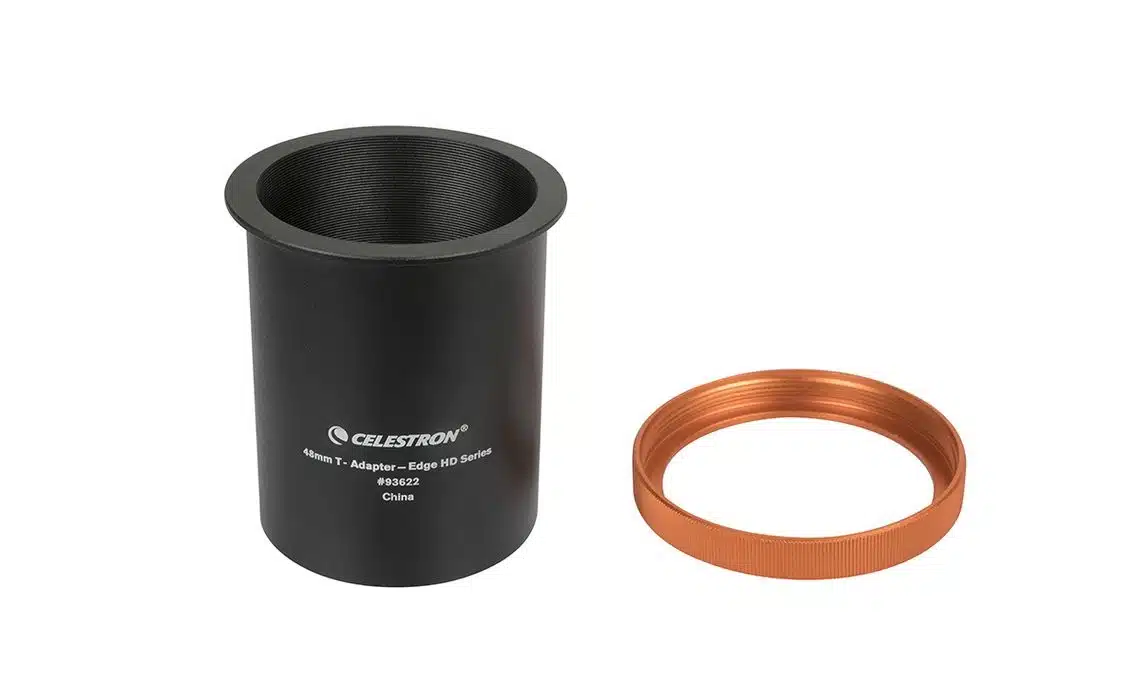

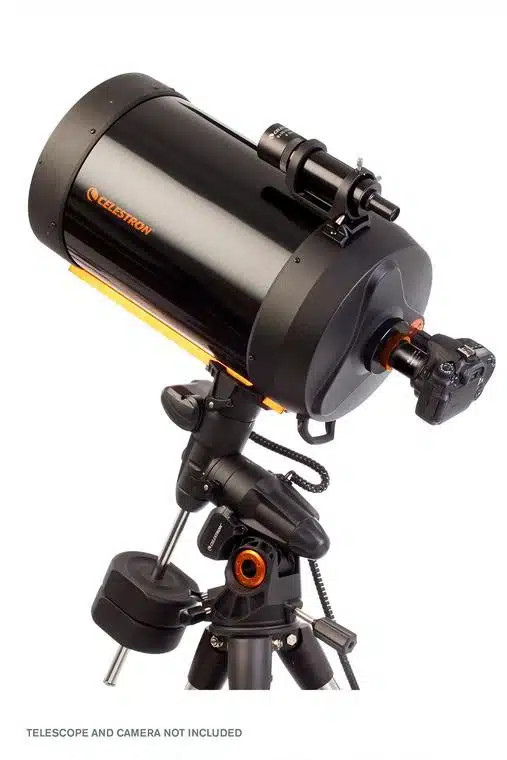

This Celestron 48mm T-Adapter Edge HD 925 11 14 inchAttaches directly to the rear cell of the larger Edge optical tubes.
Please Check Availability
- Are You Visiting Our Store? CLICK HERE For Today's Availability
- Delivery or Click n Collect
- 28 Days Returns Policy
With DSLR CCD chips getting larger, Celestron created the 48mm T-Adapter to reduce vignetting and provide a larger light path to your camera’s sensor, producing exceptional astrophotos.
The standard T-Adapter for EdgeHD 9.25″, 11″, and 14″ comes with a 42mm T-Thread for a 42mm T-Ring. This smaller 42mm T-Adapter truncates the light cone coming from the back of the EdgeHD optical tubes, which creates vignetting in the corners of full frame imaging sensors. The 48mm T-Adapter has a larger T-Thread opening, allowing the unhindered light to illuminate the entire sensor, optimizing your full-frame sensor’s capabilities.

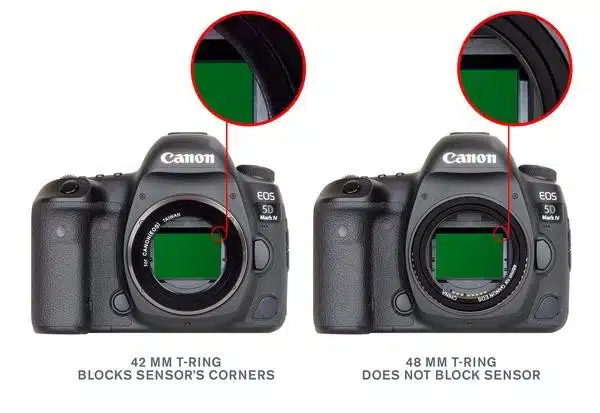

Below, you will find the difference between the 42mm and the 48mm T-Rings to give you an idea of the space the 42mm and 48mm T-Threads on the T-Adapter will provide
features
- Attaches directly to the rear cell of the larger Edge optical tubes
- Produces better illumination for today’s larger full-frame imaging sensors, all the way to the corners
- Reduces vignetting–darkening around the edges of the image sensor–by providing unobstructed light to the camera
specification
Below, you will find the difference between the 42 mm and the 48 mm T-Rings to give you an idea of the space the 42 mm and 48 mm T-Threads on the T-Adapter will provide.
Compatible Telescopes: Fits all EdgeHD 9.25”, 11”, and 14” Telescopes
T-Rings Threads M48 x 0.75|NOTE: This adapter will not work with M42 x0.75 T-Rings
Flange distance 91 mm
Outside diameter 72 mm
Weight 8 oz
